Shire Dean Log Cabin - Pent Roof - FSC® Certified

Shire Dean Log Cabin - Pent Roof - FSC® Certified
1
2
3
4
5

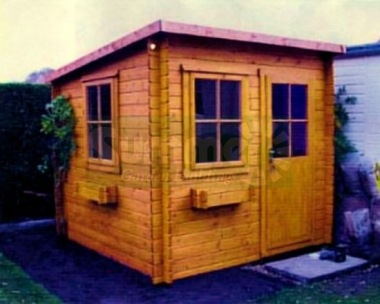

The pictures show the log cabin with optional side window and window boxes. Pictures 1 and 2 show what may be achieved using coloured preservatives.

Summary:

These substantial log cabins feature are available in 4 depths and 5 widths. The depths are 8' (2.4m), 10' (3.0m), 12' (3.6m) to 14' (4.2m). The widths are 8' to 18' (2.4m to 5.3m). All timber is FSC® certified. Feature includes a choice of 28mm, 34mm, 45mm or 70mm thick logs with optional double glazing and a durable one piece EPDM rubber roof membrane. Other features include a low profile pent roof, a single hinged door and 1 opening front window. The floor and roof are attractive and durable tongued and grooved boards. Detailed fitting instructions are supplied for DIY self assembly. Low cost installation is available in many areas.

Click here to see our Log Cabin Stock List with fast delivery

Back to the Top
  • All timber used in the construction of this product originates from sustainable forests
  • FSC Mix Credit, FSC certified product, certificate code INT-COC-003944(259), licence number FSC-C109654
  • To verify our FSC membership visit the FSC Member Search and search for Summer Garden
  • Choice of 28mm, 34mm, 45mm or 70mm thick wall logs, 28mm and 34mm thick wall logs are single tongued and grooved, 45mm and 70mm thick wall logs are double tongued and grooved
  • 62mm x 34mm pressure treated floor joists (lifetime preservative treatment)
  • Morticed and tenoned joinery doors and windows
  • Mortice lock with handles and keys
  • Single glazed horticultural glass included
  • Eaves height approximately 6'11" (2.1m)
  • Ridge height maximum 8'2" (2.5m)

Log cabins with 34mm, 45mm or 70mm logs only

  • Part glazed single hinged door
  • Overall door frame size 0.845m wide x 1.945m high (2'9" x 6'5")
  • Door size 0.705m wide x 1.805m high (2'4" x 5'11")
  • Approximate head clearance 1.855m high (6'1")
  • 1 fully opening front window
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • 20mm tongued and grooved floor boards
  • 20mm tongued and grooved roof boards
  • 135mm x 45mm planed roof purlins
  • 38kg green mineral felted roof

Log cabins with 28mm logs only

  • Part glazed single hinged door
  • Overall door frame size 0.81m wide x 1.877m high (2'8" x 6'2")
  • Door size 0.67m wide x 1.737m high (2'2" x 5'8")
  • Approximate head clearance 1.787m high (5'10")
  • 1 fully opening front window
  • Overall window frame size 0.813m wide x 0.985m high (2'8" x 3'3")
  • Window size 0.633m wide x 0.805m high (2'1" x 2'8")
  • 16mm tongued and grooved floor boards
  • 16mm tongued and grooved roof boards
  • 70mm x 45mm planed roof purlins
  • 20kg green mineral felted roof

Cabin sizes and base sizes

  • External cabin depth 2.39m, 2.99m, 3.59m or 4.19m (7'10", 9'10", 11'10" or 13'9")
  • External cabin width 2.39m, 2.99m, 3.59m, 4.19m, 4.79m or 5.34m (7'10", 9'10", 11'10", 13'9", 15'9" or 17'6")
  • Minimum base depth 2.2m, 2.8m, 3.4m or 4.0m (7'3", 9'2", 11'2" or 13'1")
  • Minimum base width 2.2m, 2.8m, 3.4m, 4.0m, 4.6m or 5.15m (7'2", 9'2", 11'2", 13'1", 15'1" or 16'11")

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

FSC® CERTIFIED TIMBER: This product is FSC certified. Our FSC licence number is FSC-C109654. Our FSC chain of custody certificate code is INT-COC-003944(259). To verify our FSC membership visit the FSC Member Search and search for Summer Garden. Please note that a valid FSC claim must always be specific to an individual product. If you want an FSC certified product it must be described as FSC 100% or FSC Mix Credit or FSC Mix 70% and accompanied by a valid licence number and certificate code from a genuine FSC member. Any other claim is invalid.

ABOUT THE FSC®: The FSC or Forest Stewardship Council is a non profit international organization which promotes responsible forest management throughout the world. Since it was established in 1994 the FSC has certified over 190 million acres of forest worldwide in over 80 countries. The FSC confirms that the forest is being managed in a way that preserves the natural ecosystem and benefits the lives of local people and workers but also sustains economic viablility. FSC certification ensures that forests around the world are responsibly managed by protecting plant and animal species, the rights of indigenous people and the safety of forest workers. FSC chain of custody certification verifies that FSC-certified material has been identified and separated from non-certified and non-controlled material at every step throughout the supply chain.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sloping wall. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger.
