45mm Side Door Apex Log Cabin 905 - Double Glazed PVCu, Large Panes
Play Video
Play Video

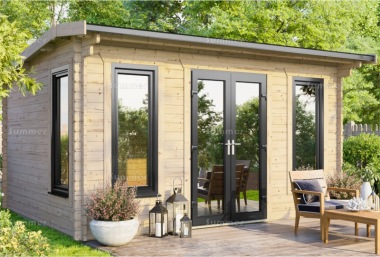

Picture 1 and 2 show the standard 10'x16' log cabin. Picture 3 shows the standard 12'x18' log cabin. Picture 4 shows an example of the interior. Pictures 5 and 6 show close up views. Picture 7 shows a simplified assembly video of a similar building in this range.


These high quality side door apex roof log cabins are available in sizes from 8'x16' to 14'x18' (2.4x4.8m to 4.2x5.4m) with 45mm thick wall logs. Quality features include PVCu doors and windows with panoramic low level large pane glazing. Two opening front windows, an opening side window and premium double glazing are included as standard. A durable one piece EPDM rubber membrane is also included. Options include floor and roof insulation. Detailed fitting instructions are supplied for DIY self assembly. Low cost installation is available in many areas.

Click here to see our Log Cabin Stock List with fast delivery

Back to the Top
  • All timber used in the construction of these log cabins originates from sustainable forests
  • Interlocking 45mm thick tongued and grooved wall logs
  • Scandinavian redwood or whitewood
  • Quality construction with interlocking logs at every corner
  • All logs double grooved for superior draughtproofing
  • Strong 19mm thick tongued and grooved floor boards
  • Strong 19mm thick tongued and grooved roof boards
  • Substantial 2"x6" roof purlins (approximate finished size 45x145mm)
  • Pressure treated 3"x2" foundation beams (approximate finished size 75x50mm)
  • Pressure treated 2"x2" floor bearers (approximate finished size 50x50mm)
  • One piece EPDM rubber roof membrane, a tough roof surface which is virtually maintenance free
  • Anthracite grey PVCu doors and windows
  • Panoramic low level glazing
  • Modern large pane glazing
  • Mortice lock with handles and keys
  • Chrome finish door and window handles
  • 2 opening front window 0.58m wide x 1.36m high (1'11" x 4'6")
  • 1 opening side window 0.58m wide x 1.36m high (1'11" x 4'6")
  • Inward opening tilt and turn windows
  • Double glazed doors and windows with toughened glass (no plastic, acrylic, styrene or perspex)
  • Internal skirting boards
  • Chamferred top wall logs
  • Pre assembled gables
  • Front roof canopy projection approximately 0.45m (1'6")
  • Double hinged doors approximately 1.43m wide x 1.89m high (4'8" x 6'2")
  • Overall ridge height approximately 2.49m (8'2")
  • Height at the rear approximately 2.21m (7'3")

2.4x4.8m log cabin

  • External size 2.39m deep x 4.79m wide (7'10" x 15'9")
  • Internal room size approximately 2.11m deep x 4.51m wide (6'11" x 14'10")
  • Minimum base size 2.2m deep x 4.6m wide (7'3" x 15'1")

3.0x4.8m log cabin

  • External size 2.99m deep x 4.79m wide (9'10" x 15'9")
  • Internal room size approximately 2.71m deep x 4.51m wide (8'11" x 14'10")
  • Minimum base size 2.8m deep x 4.6m wide (9'2" x 15'1")

3.0x5.4m log cabin

  • External size 2.99m deep x 5.39m wide (9'10" x 17'8")
  • Internal room size approximately 2.71m deep x 5.11m wide (8'11" x 16'9")
  • Minimum base size 2.8m deep x 5.2m wide (9'2" x 17'1")

3.6x4.8m log cabin

  • External size 3.59m deep x 4.79m wide (11'9" x 15'9")
  • Internal room size approximately 3.31m deep x 4.51m wide (10'10" x 14'10")
  • Minimum base size 3.4m deep x 4.6m wide (11'2" x 15'1")

3.6x5.4m log cabin

  • External size 3.59m deep x 5.39m wide (11'9" x 17'8")
  • Internal room size approximately 3.31m deep x 5.11m wide (10'10" x 16'9")
  • Minimum base size 3.4m deep x 5.2m wide (11'2" x 17'1")

4.2x4.8m log cabin

  • External size 4.19m deep x 4.79m wide (13'9" x 15'9")
  • Internal room size approximately 3.91m deep x 4.51m wide (12'10" x 14'10")
  • Minimum base size 4.0m deep x 4.6m wide (13'1" x 15'1")

4.2x5.4m log cabin

  • External size 4.19m deep x 5.39m wide (13'9" x 17'8")
  • Internal room size approximately 3.91m deep x 5.11m wide (12'10" x 16'9")
  • Minimum base size 4.0m deep x 5.2m wide (13'1" x 17'1")

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.

FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.

WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint. Thicker logs also provide improved insulation.

CHAMFERRED TOP WALL LOGS: This high specification building features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

HIGH SPECIFICATION DOORS & WINDOWS: The doors and windows in this garden office are similar to those used in modern house building, with high performance PVCu frames and sashes. Features include multi chamber frame profiles and sealed unit double glazing. All sashes are fitted with draught excluders and good quality ironmongery.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

LOW LEVEL GLAZING: Low level glazing provides a panoramic view from inside your garden room so you can appreciate your garden fully. With low level glazing you can enjoy a better view of the garden, especially at sites where the garden slopes away.

ONE PIECE EPDM ROOF: A tough EPDM rubber membrane is made in one piece to the size of your roof with no joins. It is easily fitted within a few minutes at normal temperatures with no heat required. EPDM rubber is completely inert, UV stable and not affected by extreme temperatures. It never perishes and it will not rot, split, crack or degrade. EPDM rubber lasts for years with little or no maintenance. It has been widely used in flat roofing for over 40 years from Alaska to the Middle East. It is increasingly popular in the UK where it is widely used for re-roofing flat roof garages and extensions. Even in extreme weather conditions EPDM rubber remains flexible and it will stretch to absorb any movement as a timber roof expands and contracts with the seasons.

SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
