Lugarde Wooden Gazebo 683 - Pent Roof, Fully Boarded Walls
1
2
3
Play Video

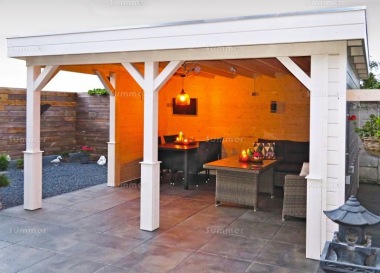

Pictures 1 and 2 show the 11'10"x13'9" (3.6x4.2m) gazebo with optional decorative post bases. Picture 3 shows the optional paint colours available.

Summary:

These quality wooden gazebos are available up to 14' (4.2m) deep and up to 20' (6.0m) wide. The sizes range from approximately 8'x8' to 14'x20'. Quality features include substantial 5"x5" posts (120x120mm) and a plain fully boarded rear wall in a choice of 28mm or 45mm wall logs. One side wall and the rear half of the other side wall also feature fully boarded wall logs. The low profile pent roof features heavy duty timber supports with 19mm thick tongued and grooved boards. The roof surface features a top quality one piece EPDM rubber roof covering which is durable and low maintenance. A heavy duty timber floor is available as an option with durable larch decking boards. These luxury gazebos are ideal for use as a hot tub cover or smoking shelter. Instructions are supplied for easy self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • All timber used in the construction of this gazebo originates from sustainable forests
  • Suitable as a smoking shelter
  • Possible use as a hot tub cover
  • Strong 120mm x 120mm posts with angled braces
  • Open walls to front between 2.4m and 3.0m wide include 2 posts (2 corner posts)
  • Open walls to front between 3.6m and 6.0m wide include 3 posts (2 corner posts and 1 intermediate post)
  • Fully boarded rear wall with a choice of 28mm or 45mm thick tongued and grooved wall logs
  • 1 fully boarded side wall with a choice of 28mm or 45mm thick tongued and grooved wall logs
  • 1 part boarded side wall with a choice of 28mm or 45mm thick tongued and grooved wall logs
  • Part boarded side walls include 1 fully boarded panel and 3 posts (2 corner posts and 1 intermediate post)
  • Side walls 2.4m wide include a 1.2m wide fully boarded panel
  • Side walls 3.0m wide include a 1.5m wide fully boarded panel
  • Side walls 3.6m wide include a 1.8m wide fully boarded panel
  • Side walls 4.2m wide include a 2.1m wide fully boarded panel
  • The roof is supplied unassembled with the rafters and roof boards cut to size
  • 19mm thick tongued and grooved roof boards (finished size after machining)
  • Durable and low maintenance one piece EPDM rubber roof surface with drainage outlet and downpipe
  • Substantial timber fascia boards to front, rear and sides
  • External eaves height approximately 7'1" (2170mm)
  • External ridge height approximately 8'0" (2450mm)
  • External roof overhang approximately 7" to all sides (180mm)
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

ONE PIECE EPDM ROOF: A tough EPDM rubber membrane is made in one piece to the size of your roof with no joins. It is easily fitted within a few minutes at normal temperatures with no heat required. EPDM rubber is completely inert, UV stable and not affected by extreme temperatures. It never perishes and it will not rot, split, crack or degrade. EPDM rubber lasts for years with little or no maintenance. It has been widely used in flat roofing for over 40 years from Alaska to the Middle East. It is increasingly popular in the UK where it is widely used for re-roofing flat roof garages and extensions. Even in extreme weather conditions EPDM rubber remains flexible and it will stretch to absorb any movement as a timber roof expands and contracts with the seasons.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the sides. The width refers to the fully boarded rear wall. All sizes quoted are the external gazebo sizes and do not include any roof overhang, unless stated otherwise. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.
