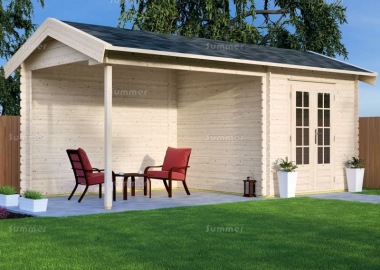

Woodpro Wooden Apex Gazebo 698 - With Integral Summerhouse

• All timber used in the construction of this log cabin originates from sustainable forests
• Integral summerhouse area
• Canopy rear wall fully boarded as standard, with fully boarded side wall as an option
• 28mm or 45mm thick tongued and grooved wall logs (finished size after machining)
• 1 strong 90mm x 90mm front post
• Rear wall only fully boarded, up to 4.0m (18'1") deep, 1 post included
• Rear wall only fully boarded, 4.5m (14'9") deep, 2 posts included
• Rear wall and side wall fully boarded, any depth, any width, no posts included
• The roof is supplied unassembled with the rafters and roof boards cut to size
• 19mm thick tongued and grooved roof boards (finished size after machining)
• Substantial timber fascia boards
• Weatherproof L-shaped double fascia boards to front and rear
• Eaves height approximately 7'9" (2.36m)
• Ridge height varies according to depth of gazebo
• Ridge height approximately 9'5" (2.86m) on 8'2" (2.5m) deep gazebos
• Ridge height approximately 9'8" (2.95m) on 9'10" (3.0m) deep gazebos
• Ridge height approximately 10'0" (3.04m) on 11'6" (3.5m) deep gazebos
• Ridge height approximately 10'3" (3.13m) on 13'1" (4.0m) deep gazebos
• Ridge height approximately 10'7" (3.22m) on 14'9" (4.5m) deep gazebos
• External roof overhang approximately 12" to all sides (300mm)
• This building is easy to deliver if access is restricted - all sections will pass through a normal single door

Summerhouse specifications

• Doors glazed with annealed glass (no plastic, acrylic, styrene or perspex)
• Premium double glazed doors with rubber weatherstrips to reduce draughts
• Doors are joinery made with fully profiled timbers and morticed and tenoned joints throughout
• Optional Georgian glazing beads, which can be removed or left out if you prefer contemporary plain glazing
• Double hinged doors, fully glazed with high security mortice lock and lever handles
• Double doors 4'0" wide x 6'4" high (1210mm x 1935mm)
• Durable aluminium door threshold
• Chrome plated door handles
• Foundation beams ex 3"x2" (70mm x 45mm) pressure treated (lifetime preservative treatment)
• Substantial 19mm thick tongued and grooved timber floor boards (finished size after machining) in the summerhouse
• Floor joists ex 3" x 2" (70mm x 45mm) pressure treated (lifetime preservative treatment)
• Internal skirting boards

Approximate summerhouse sizes

• 8' deep gazebos include a summerhouse approximately 8'2" deep x 9'10" wide (2.5x3.0m)
• 10' deep gazebos include a summerhouse approximately 9'10" deep x 9'10" wide (3.0x3.0m)
• 12' deep gazebos include a summerhouse approximately 11'6" deep x 9'10" wide (3.5x3.0m)
• 13' deep gazebos include a summerhouse approximately 13'1" deep x 9'10" wide (4.0x3.0m)
• 15' deep gazebos include a summerhouse approximately 14'9" deep x 9'10" wide (4.5x3.0m)

Approximate canopy sizes

• 8'x18' gazebos include a canopy approximately 8'2" deep x 8'2" wide (2.5x2.5m)
• 8'x20' gazebos include a canopy approximately 8'2" deep x 9'10" wide (2.5x3.0m)
• 8'x21' gazebos include a canopy approximately 8'2" deep x 11'6" wide (2.5x3.5m)
• 8'x23' gazebos include a canopy approximately 8'2" deep x 13'1" wide (2.5x4.0m)
• 10'x18' gazebos include a canopy approximately 9'10" deep x 8'2" wide (3.0x2.5m)
• 10'x20' gazebos include a canopy approximately 9'10" deep x 9'10" wide (3.0x3.0m)
• 10'x21' gazebos include a canopy approximately 9'10" deep x 11'6" wide (3.0x3.5m)
• 10'x23' gazebos include a canopy approximately 9'10" deep x 13'1" wide (3.0x4.0m)
• 12'x18' gazebos include a canopy approximately 11'6" deep x 8'2" wide (3.5x2.5m)
• 12'x20' gazebos include a canopy approximately 11'6" deep x 9'10" wide (3.5x3.0m)
• 12'x21' gazebos include a canopy approximately 11'6" deep x 11'6" wide (3.5x3.5m)
• 12'x23' gazebos include a canopy approximately 11'6" deep x 13'1" wide (3.5x4.0m)
• 13'x18' gazebos include a canopy approximately 13'1" deep x 8'2" wide (4.0x2.5m)
• 13'x20' gazebos include a canopy approximately 13'1" deep x 9'10" wide (4.0x3.0m)
• 13'x21' gazebos include a canopy approximately 13'1" deep x 11'6" wide (4.0x3.5m)
• 13'x23' gazebos include a canopy approximately 13'1" deep x 13'1" wide (4.0x4.0m)
• 15'x18' gazebos include a canopy approximately 14'9" deep x 8'2" wide (4.5x2.5m)
• 15'x20' gazebos include a canopy approximately 14'9" deep x 9'10" wide (4.5x3.0m)
• 15'x21' gazebos include a canopy approximately 14'9" deep x 11'6" wide (4.5x3.5m)
• 15'x23' gazebos include a canopy approximately 14'9" deep x 13'1" wide (4.5x4.0m)

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor if required.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger. All sizes are approximate.

• Choice of summerhouse to the left or the right of the gazebo (viewed from outside)
• Choice of 28mm or 45mm thick tongued and grooved wall logs
• Fully boarded gazebo side wall in 28mm or 45mm thick tongued and grooved wall logs
• A choice of Georgian or contemporary plain glazing at the same price - this does not need to be specified when ordering
• Decorative mineral felt tiles
• Factory finished translucent wood stain treatment in a choice of one colour or two colours with the doors being painted a different colour to the wall logs and roof
• Pressure treated timber in a brown finish and with a choice of unpainted or factory finished doors
• A choice of composite decking kits
• Microporous preservatives delivered only
• Galvanized steel post support brackets
• Portable indoor gas heaters - no need for an electricity supply or trailing leads

TRANSLUCENT WOOD STAIN TREATMENT - FACTORY FINISHED: This high quality preservative finish is professionally spray applied in the factory to both sides of the timber. The cabin is treated inside and out in a choice of colours. You can choose one or two of our colours. The doors and windows can be sprayed the same colour as the wall logs and roof or painted a different colour. Treatment of the roof includes the rafters and boards. Microporous woodstains offer superior protection plus greater durability. Microporous woodstains are impervious to water but not to water vapour, which allows the wood to breathe. The appearance of colours and shades may vary between different screens or devices.

PRESSURE TREATED TIMBER: Pressure treated wall logs and roof timbers in a brown finish. The doors and windows can be supplied unpainted or factory finished with a semi opaque microporous paint treatment. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. Pressure treated or tanalised wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.

WPC COMPOSITE DECKING KITS: This superb quality WPC wood plastic composite decking closely resembles real wood, with the same look and feel. However, it is virtually maintenance free and it will never rot. At a glance it is difficult to tell the difference between this composite material and real timber decking with a stained finish. Furthermore, the similarities are not skin deep like a thin veneer. The realistic finish has a fibrous surface which looks similar to the grain of real wood. This synthetic composite is also heavier and stronger than real wood. The strength, durability and lack of maintenance make this superb decking a popular choice with pensioners and discerning commercial buyers such as care homes. Occasional cleaning with soapy water normally restores the original appearance. If any dirt or stains become ingrained after prolonged neglect even the most stubborn marks can be cleaned with a pressure washer.

Our WPC composite decking is a revolutionary material which provides all the benefits of real wood without the maintenance. It can be left outside uncovered all year round. Unlike real wood this synthetic wood is a weatherproof material with no knots, splinters, machining marks or other imperfections. It will never develop splits or shakes and no sap will ever ooze out of it. Our wood plastic composite is an equal mixture of real wood and recycled plastic. Even the wood is a mixture of sawdust and unusable offcuts, so it is the ultimate environmentally friendly alternative to wood. The colour pigments are mixed in before the powdered composite is moulded into shape, so the colour runs all the way through the finished product. The boards are completely impervious to water. The boards can be sawn, drilled and screwed, just like real wood. You can fix it with standard woodscrews. Being heavier and denser than real wood, screw fixings are actually stronger in composite boards.

MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.

Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.

Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.

Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.

Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.

WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.

WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

OPTIONAL GEORGIAN OR CONTEMPORARY GLAZING: The Georgian style glazing beads are purely decorative and entirely optional. You can fit them if you prefer Georgian glazing or you can leave them out if you prefer a contemporary glazing style with large panes of glass. You can also add or remove the Georgian glazing beads at any time, even months or years after the original installation. For this reason there is no need to state your preference when you order.

GALVANIZED STEEL POST SUPPORT BRACKETS: These heavy duty brackets are designed to support timber posts and to make fixing the posts down into a timber or concrete base easier, neater and more secure. The base of the timber posts can be fixed at up to around 2" (50mm) above the ground if required to allow for future settlement of a log building and lowered in stages as the logs gradually settle. Different fixings are needed for fixing into different bases. For this reason fixings are not included. Heavy duty screws or coachbolts are suitable for fixing into a timber base. Explanding bolts, hammer fixings or plugs and screws may be suitable for fixing into concrete. If your building is sited on an existing lawn we recommend digging a hole for each post and filling it with concrete to create foundation pads. If the brackets are correctly fixed there should be no direct contact between the timber posts and the ground.

BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.

SOLAR POWERED LIGHTS: These ingenious and affordable solar powered lights are easy to install with no mains wiring and they cost nothing to run. During the day the externally mounted solar panel converts daylight into electricity and recharges the batteries. The solar panel is weatherproof and suitable for outside use. It is normally positioned high on the walls of your gazebo or on the roof. Our solar internal lights solve the problem of seeing inside your gazebo at night. Our solar security lights illuminate the approach to your gazebo at night and may also deter burglars. After dusk the passive infra red movement detector switches itself on when it detects movement. The more expensive solar lights are brighter and stay on for longer.
