Lugarde Wooden Gazebo 333 - Lean To, Felt Tiles
Summary:
This deluxe wooden gazebo is available up to approximately 34' (10.5m) long with a projection from the host wall of up to 13' (4.0m). It features substantial 5"x5" posts (120x120mm) and superb quality joinery balustrades fitted around the perimeter. You can choose the entrance in the front or in the side to suit your individual requirements. The roof is made from attractive and durable tongued and grooved boards. The price includes decorative felt tiles in a choice of colours. A heavy duty timber floor is available as an option with durable larch decking boards. These luxury gazebos are ideal for use as a hot tub cover or smoking shelter. Instructions are supplied for easy self assembly. We offer fitting as a low cost option in many areas.
Prices fixed until Wednesday 9th October.
The prices INCLUDE DELIVERY. Everything you need for assembly is supplied including instructions and all necessary fixings. Local INSTALLATION and BASELAYING services are also available in many postcodes.
Size | With Balustrades and Felt Tiles | Timber floor | Factory finished preservative treatment | Pressure treated |
---|---|---|---|---|
8'2" x 9'10" | £2,974 | +£490 | +£436 | +£580 |
8'2" x 14'9" | £3,782 | +£735 | +£557 | +£742 |
8'2" x 19'8" | £4,472 | +£979 | +£660 | +£880 |
8'2" x 24'7" | £5,280 | +£1,223 | +£782 | +£1,041 |
8'2" x 29'6" | £6,139 | +£1,469 | +£909 | +£1,213 |
8'2" x 34'5" | £6,780 | +£1,714 | +£1,006 | +£1,342 |
9'10" x 9'10" | £3,190 | +£587 | +£468 | +£624 |
9'10" x 14'9" | £4,107 | +£882 | +£606 | +£808 |
9'10" x 19'8" | £4,905 | +£1,175 | +£726 | +£967 |
9'10" x 24'7" | £5,822 | +£1,469 | +£862 | +£1,151 |
9'10" x 29'6" | £6,787 | +£1,762 | +£1,008 | +£1,343 |
9'10" x 34'5" | £7,537 | +£2,057 | +£1,120 | +£1,494 |
13'1" x 9'10" | £3,823 | +£783 | +£563 | +£750 |
13'1" x 14'9" | £4,955 | +£1,175 | +£733 | +£976 |
Size | With Balustrades and Felt Tiles | Timber floor | Factory finished preservative treatment | Pressure treated |
13'1" x 19'8" | £5,971 | +£1,566 | +£885 | +£1,179 |
13'1" x 24'7" | £7,103 | +£1,958 | +£1,055 | +£1,406 |
13'1" x 29'6" | £8,285 | +£2,350 | +£1,233 | +£1,642 |
13'1" x 34'5" | £9,251 | +£2,741 | +£1,377 | +£1,835 |
Specifications
- Individually made to order.
- Side wall projection up to 13'1" or 4.0m
- Front wall length up to 34'5" or 10.5m
- Suitable as a smoking shelter
- Possible use as a hot tub cover
- All timber used in the construction of this gazebo originates from sustainable forests
- Superb quality joinery balustrades fitted around the perimeter of the gazebo
- The standard design includes an entrance in the front or in the side
- Strong 120mm x 120mm posts with angled braces
- Side walls between 2.5m and 4.0m wide include 3 posts (2 corner posts and 1 intermediate post)
- Front walls 3.0m long and smaller include 3 posts (2 corner posts and 1 intermediate post)
- Front walls between 3.1m and 6.0m long include 4 posts (2 corner posts and 2 intermediate posts)
- Front walls between 6.1m and 7.5m long include 5 posts (2 corner posts and 3 intermediate posts)
- Front walls between 7.6m and 9.0m long include 6 posts (2 corner posts and 4 intermediate posts)
- Front walls between 9.1m and 10.5m long include 7 posts (2 corner posts and 5 intermediate posts)
- The roof is supplied unassembled with the rafters and roof boards cut to size
- 19mm thick tongued and grooved roof boards (finished size after machining)
- Decorative mineral felt tiles included in a choice of colours
- Flashing between the wall and the gazebo is not supplied
- Eaves height approximately 7'3" (2200mm)
- Internal ridge height approximately 9'2" or 2800mm (2.5m deep gazebos)
- External ridge height approximately 9'10" or 3000mm (2.5m deep gazebos)
- External roof overhang approximately 12" to the front (300mm)
- External gazebo projection (side wall) - 2.5m (8'2"), 3.0m (9'10") or 4.0m (13'1")
- External gazebo length (front wall) - 3.0m (9'10"), 4.5m (14'9"), 6.0m (19'8"), 7.5m (24'7"), 9.0m (29'6") or 10.5m (34'5")
- This building is easy to deliver if access is restricted - all sections will pass through a normal single door
NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

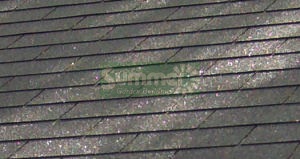

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.
LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the projection and the second dimension is the length. The projection is measured from the existing building. The length refers to the front wall. All sizes quoted are the external gazebo sizes and do not include any roof overhang, unless stated otherwise. All sizes are approximate.
Options
- Choice of front entrance or side entrance
- Choice of felt tile colours
- Heavy duty timber floor made from durable Siberian larch. The timber floor features strong decking boards fixed to a timber frame.
- Factory finished translucent wood stain treatment in a choice of colours
- Pressure treated timber in a green or brown finish
- A choice of composite decking kits
- Microporous preservatives delivered only
MICROPOROUS PRESERVATIVE - FACTORY FINISHED: This high quality preservative finish is professionally spray applied in the factory to both sides of the timber. The gazebo is treated inside and out in a choice of colours. Treatment of the roof includes the rafters and boards. The microporous preservative repels water while allowing the timber to breathe.
PRESSURE TREATED TIMBER: Pressure treated timber throughout with a choice of a green or brown finish. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. Pressure treated or tanalised wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.
WPC COMPOSITE DECKING KITS: This superb quality WPC wood plastic composite decking closely resembles real wood, with the same look and feel. However, it is virtually maintenance free and it will never rot. At a glance it is difficult to tell the difference between this composite material and real timber decking with a stained finish. Furthermore, the similarities are not skin deep like a thin veneer. The realistic finish has a fibrous surface which looks similar to the grain of real wood. This synthetic composite is also heavier and stronger than real wood. The strength, durability and lack of maintenance make this superb decking a popular choice with pensioners and discerning commercial buyers such as care homes. Occasional cleaning with soapy water normally restores the original appearance. If any dirt or stains become ingrained after prolonged neglect even the most stubborn marks can be cleaned with a pressure washer.
Our WPC composite decking is a revolutionary material which provides all the benefits of real wood without the maintenance. It can be left outside uncovered all year round. Unlike real wood this synthetic wood is a weatherproof material with no knots, splinters, machining marks or other imperfections. It will never develop splits or shakes and no sap will ever ooze out of it. Our wood plastic composite is an equal mixture of real wood and recycled plastic. Even the wood is a mixture of sawdust and unusable offcuts, so it is the ultimate environmentally friendly alternative to wood. The colour pigments are mixed in before the powdered composite is moulded into shape, so the colour runs all the way through the finished product. The boards are completely impervious to water. The boards can be sawn, drilled and screwed, just like real wood. You can fix it with standard woodscrews. Being heavier and denser than real wood, screw fixings are actually stronger in composite boards.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Weed membranes are not needed below a timber floor. The self draining design prolongs the life of a timber floor. Unlike paving or concrete our plastic bases are fully relocatable. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.
ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We offer exactly the same eco-grids as driveways and carparks. Gravel or shingle infill is not required below a timber floor. Whatever you store in your building, our eco-grids will support the weight easily. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. Extensive preparation is not normally required - just level the soil and lay the pavers directly on soil or on a thin layer of sand or pea shingle. Any exposed edges around the base can be left unfilled or filled with gravel or shingle.
ECO-PAVING BASE KITS: Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily easily laid over an existing hard surface.
Delivery
- Delivery is normally between 7 and 8 weeks after order.
- Our gazebo prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
FREE FORKLIFT OFFLOAD: The delivery lorry normally includes a Moffett forklift to unload your building quickly and easily without assistance. There is normally one pack which is unloaded on the drive or verge at the front of your property. Pack sizes vary from around 3.5m long for a small cabin to 5.5m long for a larger cabin. The packs are polythene wrapped and securely strapped while in transit but after the pack is opened the individual components are easy to carry. The wall logs can be carried one or two at a time and all packages are designed to pass through a normal single door.
RESTRICTED ACCESS: The delivery vehicle is a large lorry, typically around 50' or 15m long and 9' or 2.7m wide, which is unloaded from the side. If there is no suitable unloading area at your property the driver can park several hundred yards away and carry the cabin with the forklift. The fork lift can carry the cabin sideways or end on so it can carry a long pack up a narrow lane. Although the tyres are all terrain the fork lift requires a firm and flat route from the parking area to your property with no steps or steep slopes. With advance warning we can normally overcome most access restrictions, often at no extra cost. Please contact us if you have any concerns regarding the access at your site.
DELIVERY TO SCOTLAND: Although southern Scotland is inside our normal delivery area we can also deliver to other parts of Scotland. The delivery period may be a week or two longer and there may be additional delivery costs. Please phone 01603 721590 for further details.
Ordering/Payment
- All gazebo prices include VAT.
- Pay only 30% deposit when you order this gazebo by phone or online.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Debit and MasterCard Debit. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque please email us.
Installation
- Low cost installation available in many areas
- Pay separately on completion
THOUSANDS OF SATISFIED CUSTOMERS: Since we were established in 1981 we have connected thousands of customers to our unique network of independent fitters and baselayers. Specialist teams have offered to install our buildings or lay bases in many areas at low fixed rates in return for recurring work. The prices are offered within a specific area and subject to conditions. You deal direct with the fitter or baselayer which keeps the prices low and you pay them separately on completion. We make no commission except for a small upfront referral fee. The fitters and baselayers pay us nothing and we pay them nothing. Although we do not manage or supervise the work directly we listen carefully to feedback and any team who provides a poor service is removed from our network. For decades this effective system has provided a low cost option for our customers with high levels of satisfaction.
LOW PRICES FOR BASELAYING AND INSTALLATION: Low cost fitters and baselayers are available in many areas. To see the prices in your local area just enter the first half of your postcode at the top of every page or CLICK HERE. All of the specialist teams available in your area are listed alongside the building prices. To see their prices and conditions just click on the blue "i" symbol next to each team. To order online just add your chosen fitter or baselayer to your shopping basket before you proceed to the checkout.
NO FITTERS IN YOUR AREA? If you cannot see any fitters or baselayers in your area please contact us. We can often obtain a competitive quote from a team who is willing to travel a bit further. If you experience any other problems, for example entering your postcode or finding the fitting prices just contact us.
FITTERS & BASELAYERS REQUIRED - REGISTER FREE: Give your business a boost - we can put you in touch with customers in your local area! We need more fitters and base layers in all areas across England, Scotland and Wales. Register now - its free! It only takes a few minutes to register. Just CLICK HERE to apply online.
